Programmer
To download code to the chip, there are two methods available:
| 1) | SL |
| 3 wires. 10 devices can be programmed in parallel. It is particularly suitable for mass prodcution. | |
| 1) | Software: |
| a) ISP Programmer | |
| 2) | Hardware: |
| a) DC6688SLP-USB / DC6688SLP-1 | |
| b) DC6688F05-EVK (optional) | |

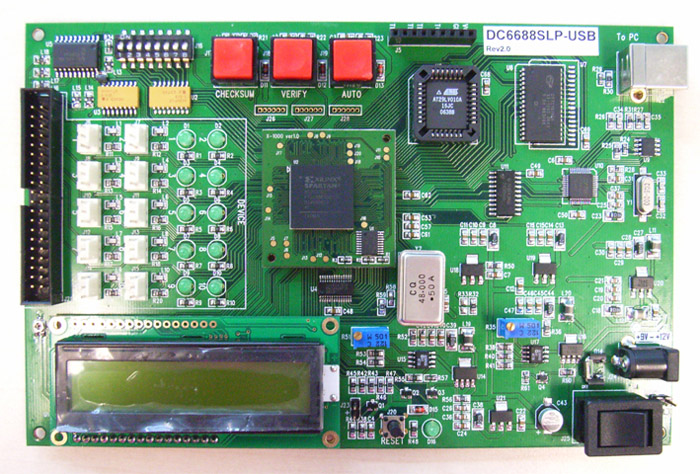

A snapshot of DC6688SLP-USB is shown here:
|

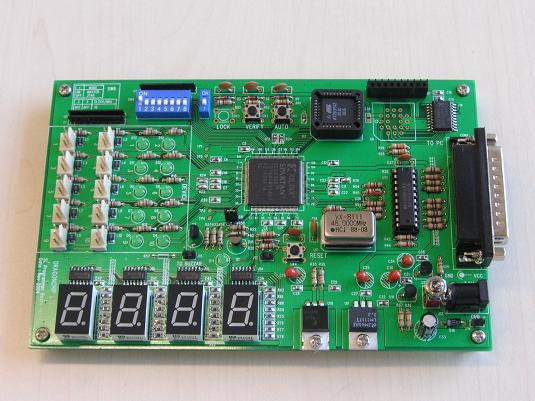

A snapshot of DC6688SLP-1 is shown here:
 |

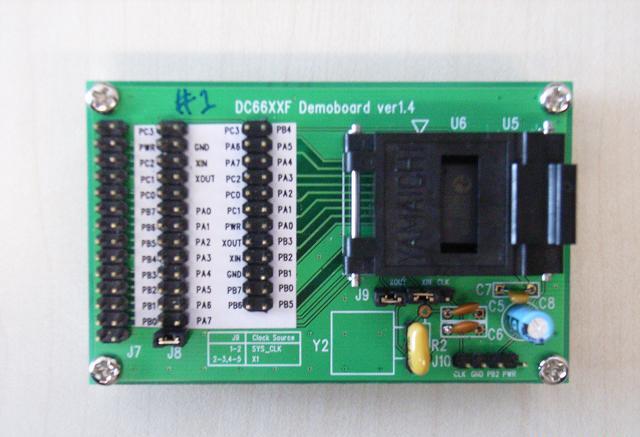

A snapshot of hardware for DC6688F05-EVK is shown here:
 |
To install the whole system, click the following document for details:
