Programmer
To download code to the chip, there are one methods available:
| 1) | SL |
| This is an innovative method. Interface just need 3 lines. It can program 10 devices serially at a time. | |
| 2) | GANG Programmer |
| This is a traditional method and interface need 7 lines. It can program 10 devices serially at a time. It is particularly suitable for mass prodcution. | |
| 1) | Software: |
| a) ISP Programmer | |
| 2) | Hardware: |
| a) DC6688SLP | |

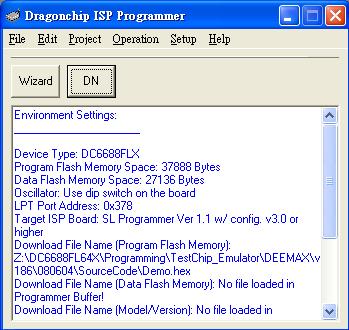

A snapshot of software is shown here:
|
A snapshot of hardware for DC6688SLP is shown here:
 |
To install the whole system, click the following document for details:
| 1) | Software: |
| a) GUI(Supplier: Aprojin) | |
| 2) | Hardware: |
| a) Dragonchip Exclusive Devices(Supplier: Aprojin) | |

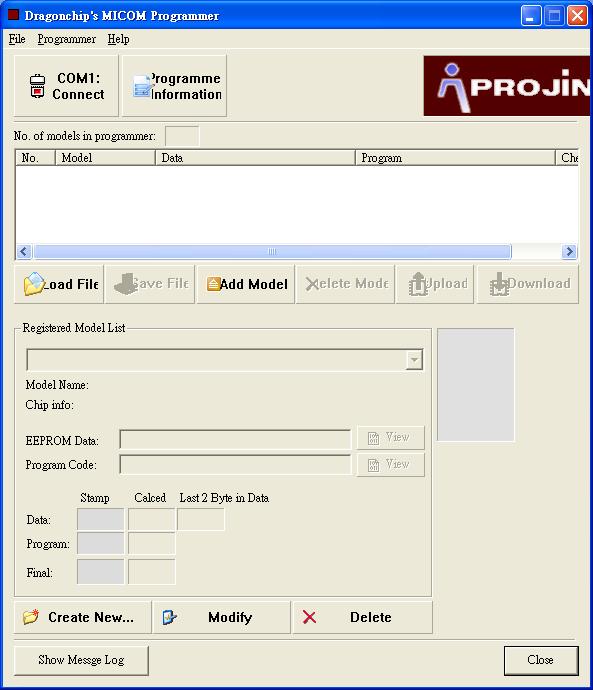

A snapshot of software is shown here:
 |

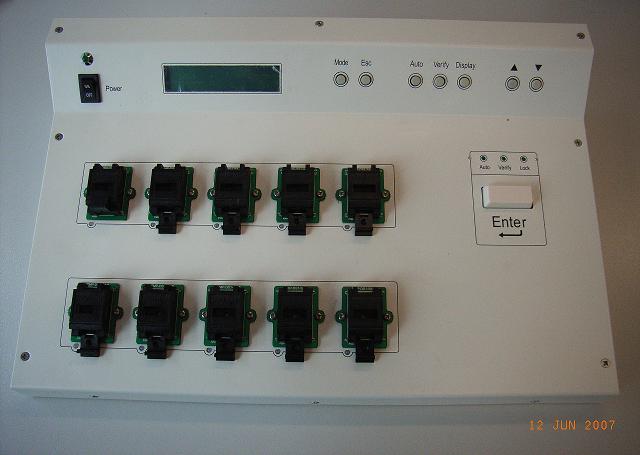

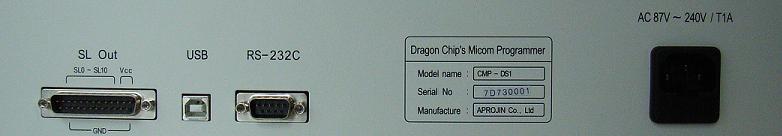

A snapshot of hardware is shown here:
 |
 |
