Programmer

To download code to the chip, there are two methods available:

1) SPI
7 wires.

2) SL
3 wires. 10 devices can be programmed in parallel. It is particularly suitable for mass prodcution.





1) SPI

1) Software:
a) ISP Programmer

2) Hardware:
a) ISP Programmer ver1.3

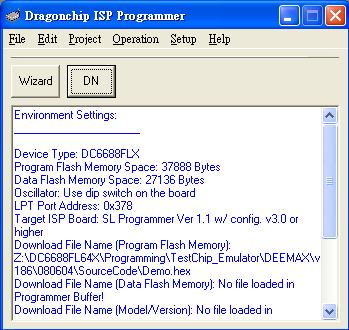

A snapshot of software is shown here:

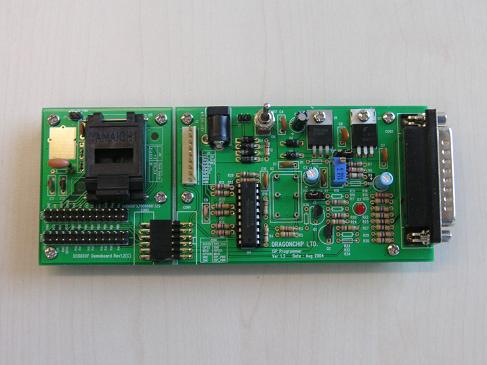

A snapshot of hardware is shown here:

To install the whole system, click the following document for details:

User Manual for ISP Programmer board ver1.3

DC6688F-EVK


2) SL

1) Software:
a) ISP Programmer

2) Hardware:
a) DC6688SLP-USB
b) DC6688SLP

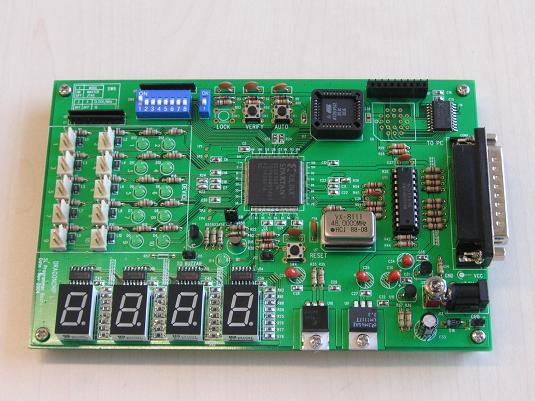

A snapshot of DC6688SLP-USB is shown here:

To install the whole system, click the following document for details:

User Manual for DC6688SLP-USB



A snapshot of DC6688SLP-1 is shown here:

To install the whole system, click the following document for details:

User Manual for DC6688SLP
