Programmer
To download code to the chip, there are two methods available:
| 1) | SL |
| This is an innovative method. Interface just need 3 lines. | |
| 2) | GANG Programmer |
| This is a traditional method and interface need 7 lines. It can program 10 devices serially at a time. It is particularly suitable for mass prodcution. | |
| 1) | Software: |
| a) ISP Programmer | |
| 2) | Hardware: |
| a) DC6688SLP-USB / DC6688SLP-1 | |
| b) GANG Socket board ver1.0 | |

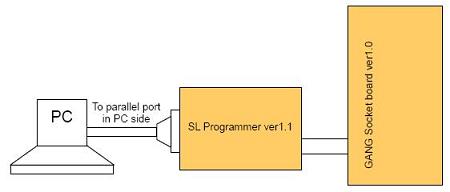

The whole system setup is shown below:
|
User can download the code though the software ISP in PC to the SL programmer board. Once the code downloaded, the SL programmer board can detach from PC as a standalone programmer to program the IC on the GANG socket board.
A snapshot of software is shown here:
 |
A snapshot of DC6688SLP-USB is shown here:
 |
To install the whole system, click the following document for details:
A snapshot of hardware "SL Programmer board ver1.1" is shown here:
 |
To install the whole system, click the following document for details:

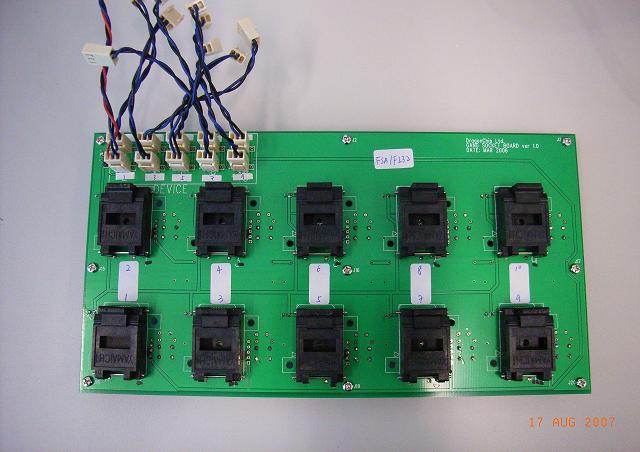

A snapshot of hardware "GANG Socket board ver1.0" is shown here:
 |
To install the system, click the following document for details:
User Manual for GANG Socket Board ver1.0
| 1) | Software: |
| a) GUI(Supplier: Aprojin) | |
| 2) | Hardware: |
| a) Dragonchip Exclusive Devices(Supplier: Aprojin) | |
A snapshot of software is shown here:
 |

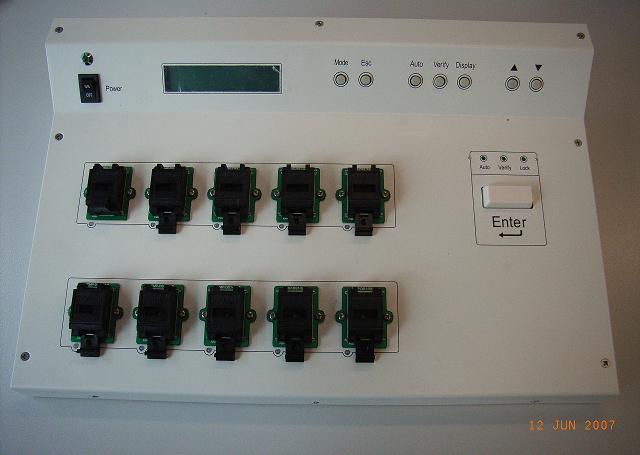

A snapshot of hardware is shown here:
 |
 |
