Evaluation Board
| The evaluation boards available are list below: | |
| 1) | SOP24 / SOP28 |
| 2) | TSSOP24 / TSSOP28 |

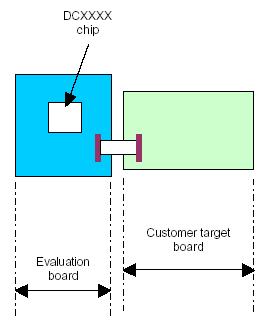

Here is an overview of whole hardware setup:
|
It comprises of the following parts:
| 1) | Evaluation board |
| DC6688F-EVK can be used for evaluation | |
| 2) | Customer Target board |
| The target board is supposed to be made by customer. An example for remote control application clicks here. | |

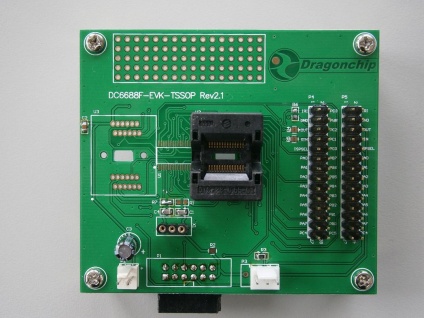

A snapshot of hardware is shown here:
 |
A snapshot of hardware is shown here:
 |
