Emulator
The emulator available for customer is DEEMAX 80532-4T
Click here to download the driver and WUIT software (WUIT R4.1.0.3).
A snapshot of hardware is shown here:
|

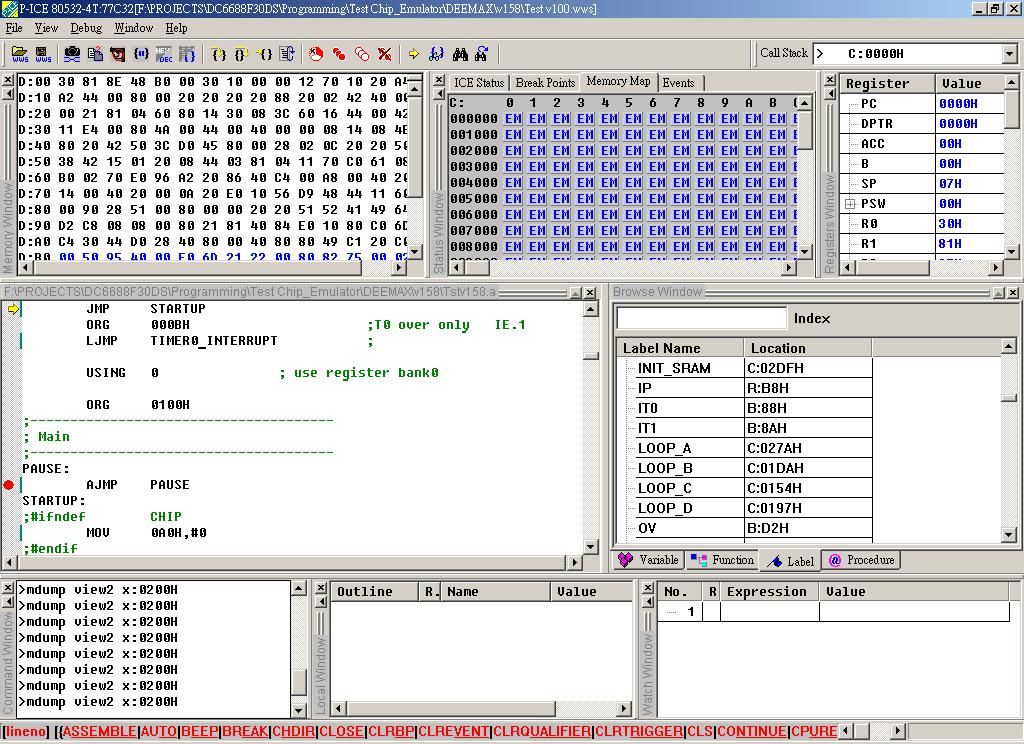

A snapshot of software is shown here:
 |

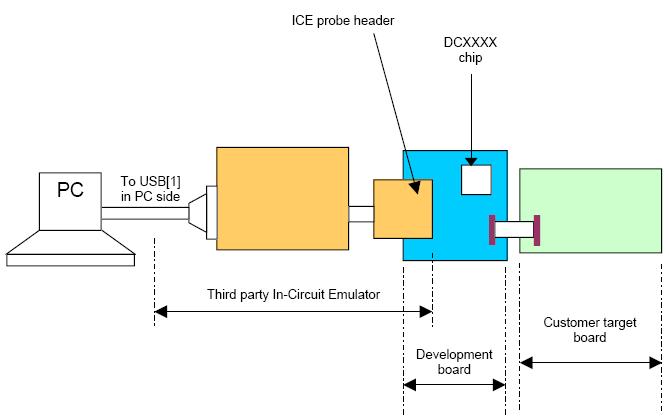

Here is an overview of whole hardware setup:
 |
It comprises of the following parts:
| 1) | Third party In-Circuit Emulator | |
| Here DEEMAX 80532-4T is used and made by DEEMAX Technologies. Inc. | ||
| 2) | Development board | |
| DC66XXF developer III board ver3.0 or higher must be used. | ||
| This board is provided by Dragonchip Ltd. | ||
| Support Devices: | ||
| a) DC6688FSA | ||
| 3) | Customer Target board | |
| The target board is application dependent and is supposed to be made by customer. An example for remote control application clicks here. | ||
| 4) | PC | |
| Pentium III: 850MHz or higher | ||
| 512MB-RAM | ||
| Windows2000/XP | ||
To install the whole system, click the following document for details:
1) User Manual for DC66XXF Developer III board ver3.0
2) Development Tools Setup Guide for Dragonchip Development board
