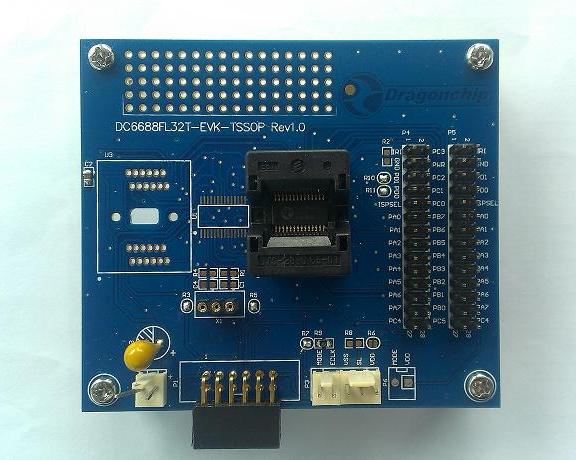

Evaluation Board: DC6688FL32T-EVK-TSSOP
Evaluation board: DC6688F-EVK-LQFP

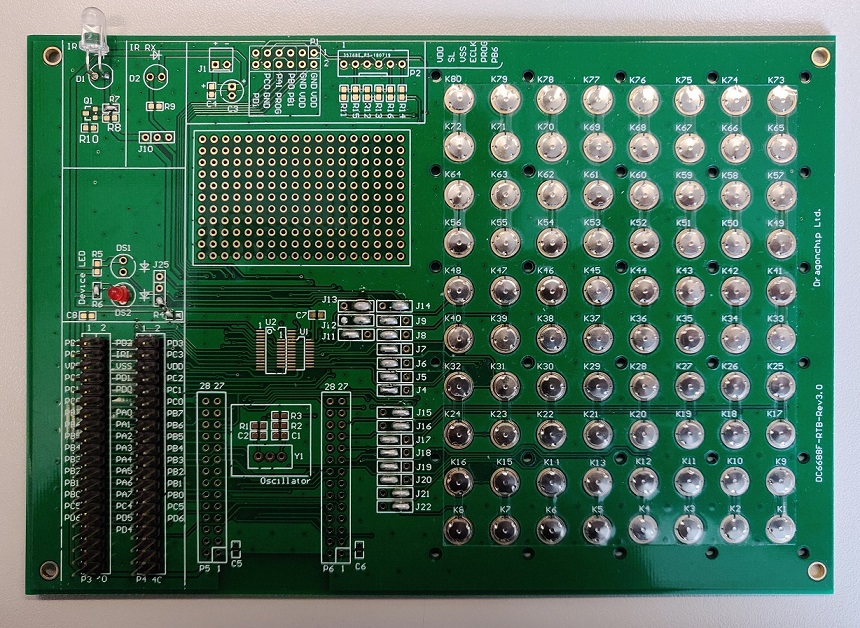

Target board: DC6688F-RTB
Hardware Setup
The evaluation board can be connected to customer target board by ribbon cable for development or evaluation purpose.
Ordering Information
| EVK Part Number | Supported Products |
|---|---|
| DC6688FL32T-EVK-TSSOP | DC6688FST in TSSOP24 package |
| DC6688F-EVK-LQFP | DC6688FLT in LQFP32 package |
| DC6688F-RTB | DC6688FST in TSSOP20/24 package |
Downloads
| Title | Revision | Type | Size | Date |
|---|---|---|---|---|
| User Manual for Evaluation board | 1.3 | 550K | 2013/1 | |
| User Manual for Target board | 1.0 | RAR | 590K | 2018/12 |
