Evaluation Board for DC6688FLE

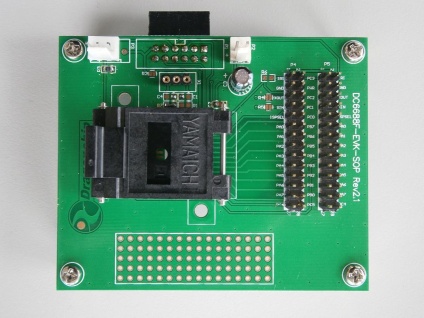

DC6688F-EVK-SOP

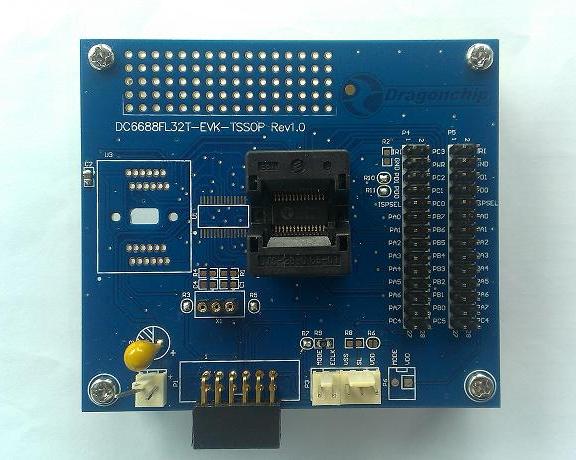

DC6688FL32T-EVK-TSSOP

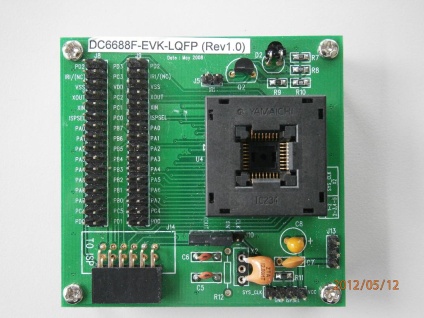

DC6688F-EVK-LQFP

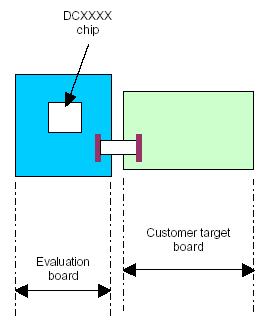

Hardware Setup

The evaluation board can be connected to customer target board by ribbon cable for development or evaluation purpose.


Ordering Information

EVK Part Number Supported Products
DC6688F-EVK-SOP DC6688FLE in SOP24/28 package
DC6688FL32T-EVK-TSSOP DC6688FLE in TSSOP24/28 package
DC6688F-EVK-LQFP DC6688FLE in LQFP32 package

Downloads

Title Revision Type Size Date
User Manual 1.3 PDF 550K 2013/1
